Model 3700 Series
Model 3720

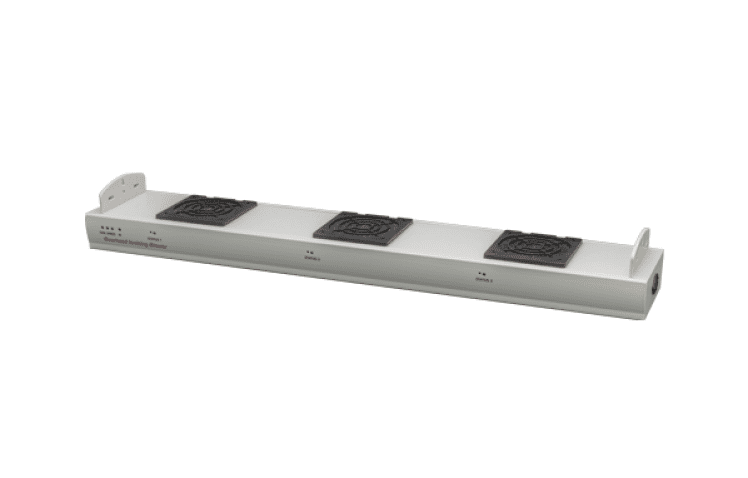

CoreStat® Overhead Ionizing Blower
Model 3830E, equipped with Core Insight’s CoreStat® technology, is a Steady-State DC type 3 Fan ionizer. It is easy to install because it maintains a low ion balance even without a separate ground connection, and can be used even in processes that handle sensitive elements.
There is no need for additional calibration, so there are no maintenance/repair costs. Even if each filter is opened or closed to clean the discharge needle, the power is automatically cut off only in the corresponding fan area, enabling continuous static electricity elimination. You can easily check the HVP/Balance status through the LED alarm, and various functions are applied for user convenience, such as remote control via remote control, automatic discharge needle cleaning brush, and LED light insertion (optional).
There is no need for additional calibration, so there are no maintenance/repair costs. Even if each filter is opened or closed to clean the discharge needle, the power is automatically cut off only in the corresponding fan area, enabling continuous static electricity elimination. You can easily check the HVP/Balance status through the LED alarm, and various functions are applied for user convenience, such as remote control via remote control, automatic discharge needle cleaning brush, and LED light insertion (optional).
video
FEATURES
- Stable ion balance
- Low ion balance: enables use of sensitive device processes
- Check HVP/Balance operation through LED & Audio alarm
- Equipped with integrated LED lighting (optional)
- Monitoring (FMS) system applied
- Ionizer that does not require calibration
- Automatic power off according to filter opening and closing
- Control multiple products via remote control
- Built-in automatic discharge needle cleaning brush
BENEFITS
- fast deionization time
- ON & OFF time-sensitive operation
- Individual control and display of output elements
- Large capacity control possible
SPECIFICATION
Input Voltage | 100 -240 VAC, 1A Max. | Monitoring | FMS monitoring interface |
Output Voltage | – | Air Pressure | – |
Ion Emission | Steady-state DC Technology | Air Inlet | – |
Balance | ＜±5 V | Material | Enclosure, Filter Cover and Bracket: ABS plastic |
Discharge Time | ±1000 V to ±100 V less than 3 sec (45cm) | Dimensions (mm) | 118H x 180D x 1000L |
Emitter Points | Tungsten 99.99% | Weight | 3.9kg |
Alarm | Visual & Audio alarm operate for power failure and out of balance | Warranty | 2 year limited warranty |
